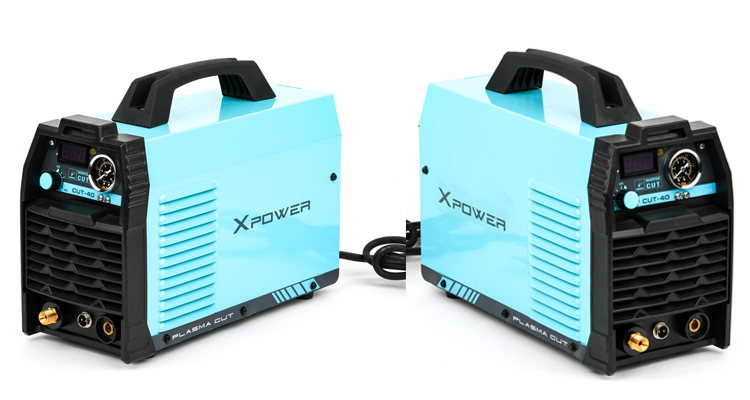

Japanese hot sell portable air plasma cutter cutting machine
Product Description
Product Description
Features
1. MOSFET inverter and PWM technology, energy-efficient and low noise.
2. Use compressed air as cutting gas source, cost-effective.
3. Air pressure and cutting current adjustable.
4. Easy operation, narrow cutting seams, smooth cutting performance and less deformation.
5. Circuit protection against over current, over voltage and over heat.
6. Plastic panel, digital display, compact design and easy to carry around.
7. Light industrial applications: production line work; plant maintenance; garage/job shops; fabrication; etc.
2. Use compressed air as cutting gas source, cost-effective.
3. Air pressure and cutting current adjustable.
4. Easy operation, narrow cutting seams, smooth cutting performance and less deformation.
5. Circuit protection against over current, over voltage and over heat.
6. Plastic panel, digital display, compact design and easy to carry around.
7. Light industrial applications: production line work; plant maintenance; garage/job shops; fabrication; etc.
Japanse hot sell portable air plasma cutter cutting machine
Technical Specifications
ITEM | UNIT | CUT-30W | CUT-40W | CUT-50W |
Input Power Voltage | V | AC230V±10% | AC230V±10% | AC230V±10% |
Input Power Frequency | Hz | 50/60 | 50/60 | 50/60 |
Rated Input Capacity | KVA | 3.5 | 4.8 | 5.2 |
Output Current Range | A | 10-30 | 10-40 | 10-50 |
No-load Voltage | 250V | 230 | 236 | 245 |
Rated Duty Cycle | % | 60 | 60 | 60 |
Arc Start | Touch | Touch | Touch | |
Power Factor | cosΦ | 0.93 | 0.93 | 0.93 |
Air Pressure | mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Insulation Grade | B | B | B | |
Protection Grade | IP21S | IP21S | IP21S | |
Dimensions | MM | 420*160*295 | 420*160*295 | 420*160*295 |
weight | Kg | 7.4 | 7.6 | 7.8 |
Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are Welding Machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are Welding Machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
